CEAG Ellk92018/18 2x18W 110-254V Fluoresent fitting, 12265875111

E-Catalog

Product illustrations are exemplary and may differ from the chosen product.

HAZARDOUS (EX)

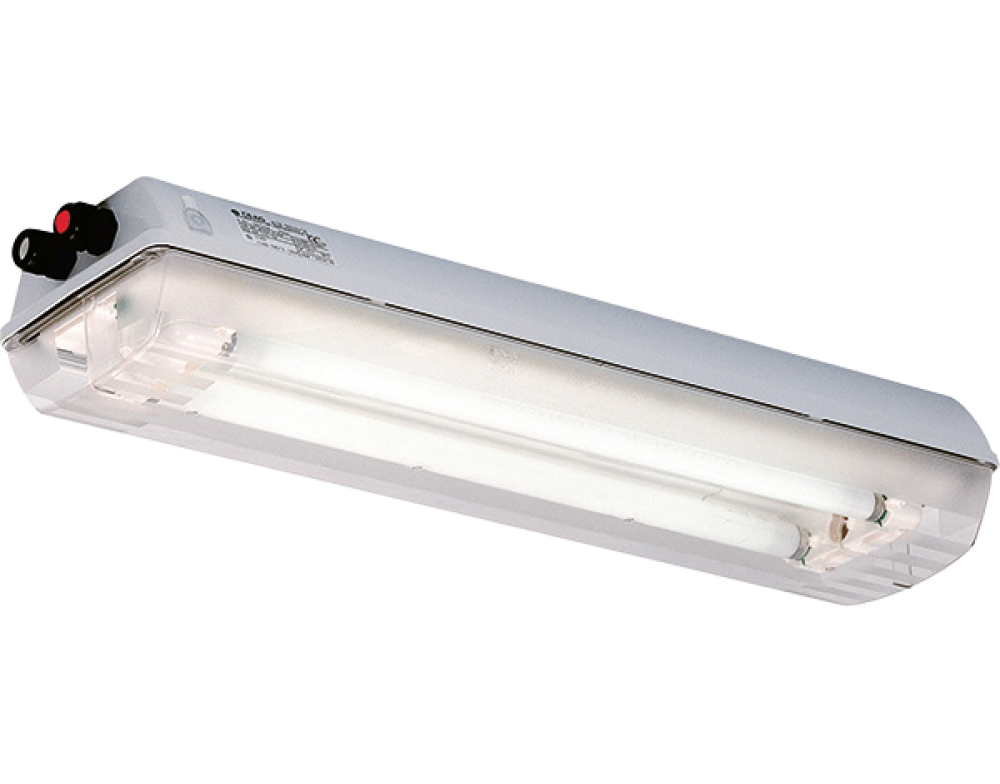

ELLK 92018/18 110-254V 2 x 18W FLUORESCENT FITTING

AZ Code: CFF-12265875111

Brand: CEAG

Model: 12265875111

Eaton Crouse-Hinds series eLLK linear fluorescent light fixture,0.38-0.18A,20 mm entry (4) each,50/60 Hz,2 ft lamp,Fluorescent,T8,Non-metallic,2-lamp,Through feed,120-240 Vac,18W

PCS

Download

Technical Specifications
Cable Entry	4 x M20, Metal Thread
Current (A)	0.38-0.18A
Voltage (V)	110-254V
Frequency	50-60Hz
Material	Glass-fibre reinforced polyester
Ingress Protection (IP) rating	IP66
Operating Temperature	-25 °C up to +55 °C (UN ≥ 220 V) -25 °C up to +50 °C (UN ≤ 220 V)
Colour	RAL 7035 light grey

International approvals

Retrofitting of existting eLLK92018/18 or eLLK92036/36 linear luminaires (latest version) is possible
Standard dual channel ballast with EOL monitoring
Safety interlocking system due to an integrated forced isolating switch
Safety standard IP66
