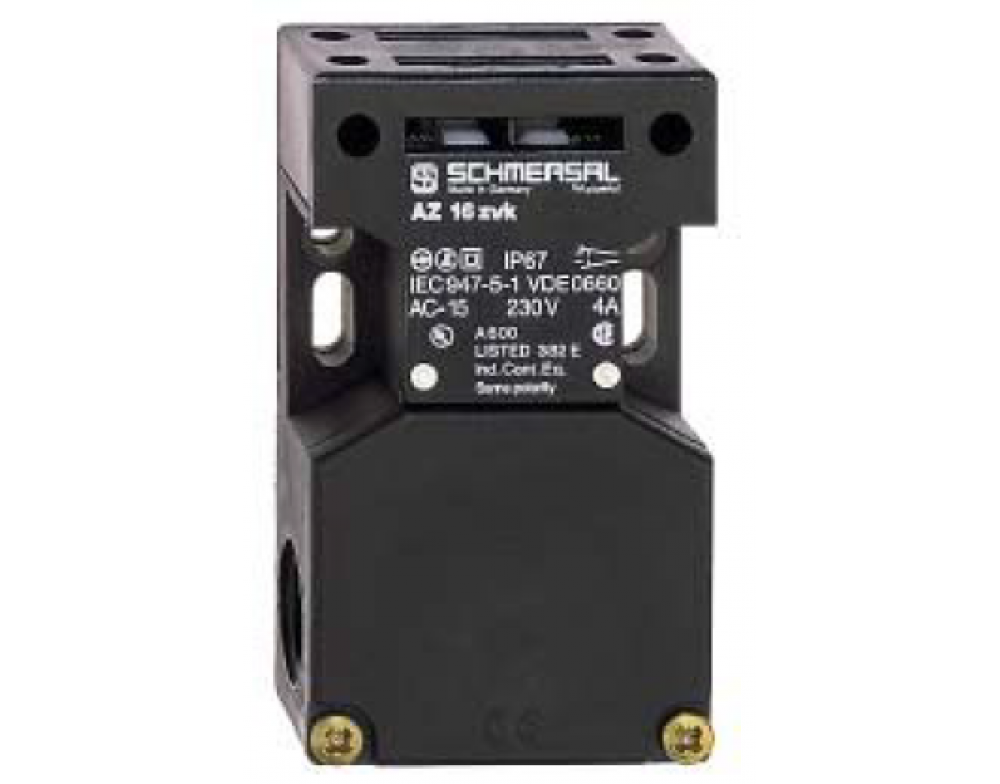

Product illustrations are exemplary and may differ from the chosen product.
Safety switch with separate actuator , thermoplastic enclosure, double insulated, long life, multiple coding, large wiring component, 3 cable entries M16 x 1.5
*actuators are sold separately
| Technical Specifications | |
| Cable Entry | M16 |
| Contacts (NO/NC) | 1NO+1NC |
| Material | - Housings: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing - Contacts: Silver |
| Measurements | |
| Dimensions : H x W x D (mm) | 90 mm x 52 mm x 30 mm |
| Weight (gram) | 115 |
| Mechanical Data | |
| Design of electrical connection | Screw connection |
| Cable section | - min: 0.75mm2 - max: 2.5mm2 |
| Higher Latching force (Y/N) | Yes |
| Latching Force | 30N |
| Mechanical life | > 1,000,000 operations |
| With ejection force (Y/N) | No |
| Positive break force | 10N |
| Positive break travel | 8mm |
| Actuating speed | max. 2 m/s |
