  • SCHMERSAL, AZ15 ZVK-M16 SAFETY SWITCH #101152787

    Product illustrations are exemplary and may differ from the chosen product.

SAFETY SWITCHES
Schmersal

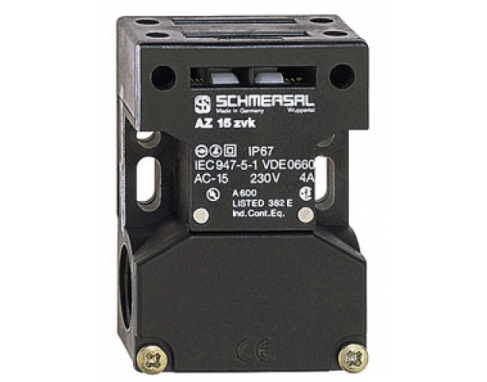

SCHMERSAL, AZ15 ZVK-M16 SAFETY SWITCH #101152787

AZ Code: SC101152787

Brand: Schmersal

Model: AZ15 ZVK-M16

Article Number: 101152787

Safety switch with separate actuator , thermoplastic enclosure, double insulated, long life, multiple coding, large wiring component, 3 cable entries M16 x 1.5


*actuators are not included

Download

Share:

Technical Specifications
Contacts (NO/NC) 1NC
Material - Housings: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Contacts: Silver
Ingress Protection (IP) rating IP67
Operating Temperature −30 °C to +80 °C
Measurements
Dimensions : H x W x D (mm) 75 mm x 52 mm x 30 mm
Weight (gram) 100
Mechanical Data
Design of electrical connection Screw connection
Cable section - min 0.75mm2
- max 2.5mm2
Higher Latching force (Y/N) No
Mechanical life > 1,000,000 operations
With ejection force (Y/N) Yes
Positive break force 10N
Positive break travel 8mm
Actuating speed max. 2 m/s
  • Thermoplastic enclosure
  • Double-insulated
  • Long life
  • 52 mm x 75 mm x 30 mm
  • Multiple coding
  • Large wiring compartment
  • High level of contact reliability with low voltages and currents
  • Slotted holes for adjustment, circular holes for location
  • Not sensitive to dirty conditions by virtue of patented roller system
  • 3 cable entries M 16 x 1.5
