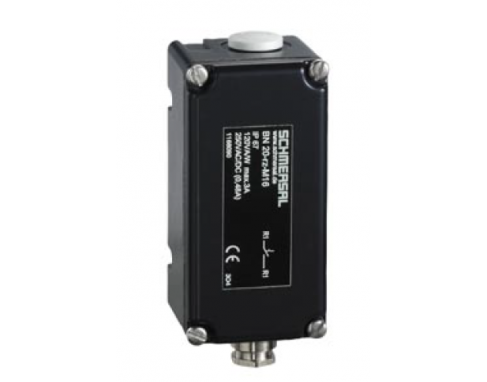

Magnetic reed switch with separate actuator, with pre-wired cable, non contact principle, 2 reed contacts, aluminium enclosure, high resistance to vibration, actuating distance up to 50mm depending on actuating magnet
| Technical Specifications | |
| Material | - Housings: Aluminium - Active surface: Metal film |
| Ingress Protection (IP) rating | IP67 |
| Operating Temperature | min: −25 °C max: +90 °C |
| Measurements | |
| Dimensions : H x W x D (mm) | 52 mm x 104 mm x 47 mm |
| Weight (gram) | 295 |
| Mechanical Data | |
| Design of electrical connection | Screw connection |
| Electrical lifetime | 1,000,000 … 1,000,000,000 operations |
| Switching frequency | max. 300/s |
| Actuating planes | Actuation from side |
| Mechanical life | 1,000,000,000 operations |
| Active area | lateral |
| Type of actuation | Magnet |
| Resistance to shock | - |
| Actuating speed | max. 18 m/s |
| Resistant to vibration | 50 g, on sine wave oscillation |
| Bounce duration | 0,3 ms … 0,6 ms |
| Latching (Y/N) | No |
| Bias magnet (Y/N) | Yes |
| Switching point accuracy | ± 0,25 mm |
| Electrical Data | |
| Design of control element | Normally open contact (NO) |
| Number of shutters | 2 piece |
| Number of openers | 0 piece |
| Switching time - Close | 0,3 ms … 1.5 ms |
| Switching time - Open | - |
| Voltage type | VAC |
| Dielectric strength | > 600 VAC (50 Hz) |
| Switching voltage | max. 250 VAC |
| Switching current | max. 3 A |
| Switching capacity | max. 120 VA / W |
• Non-contact principle
• With pre-wired cable
• 2 reed contacts
• 1 Reed contakts
• Long life
• 104 mm x 52 mm x 47 mm
• Aluminium enlosure
• Actuating distance up to 50 mm depending on actuating magnet and version
• Screw connection
• Highly resistant to vibration
• Available for actuation from front or side
