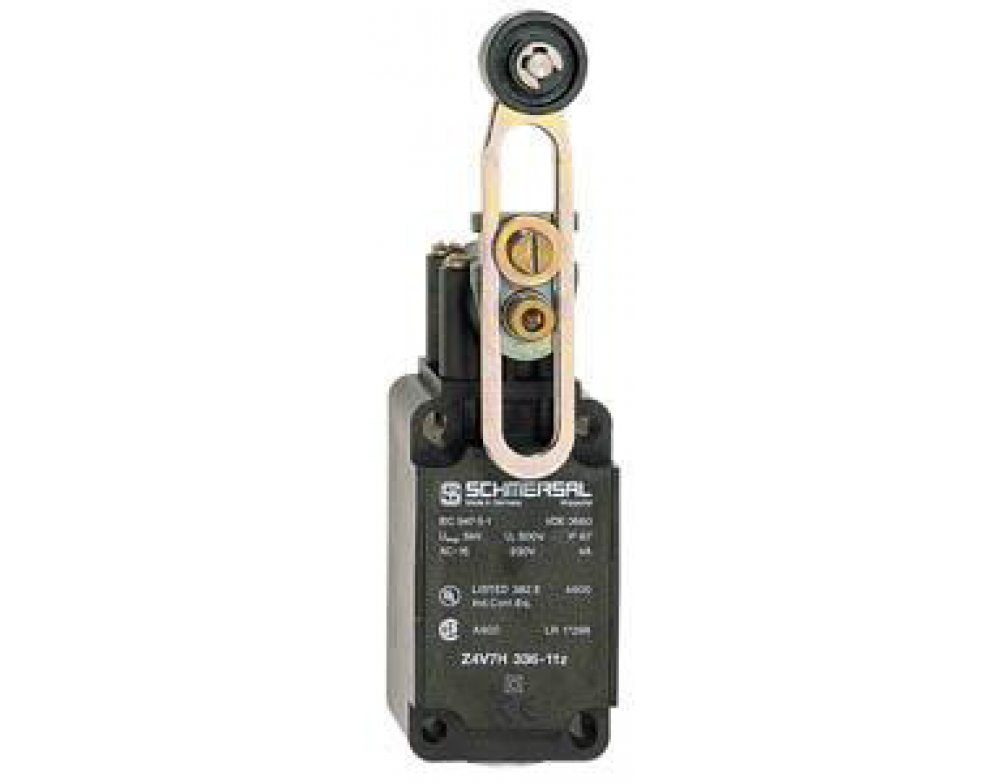

  • SCHMERSAL,T4V7H 336-11Z POSITION SWITCH WITH ROLLER LEVER 7H #101168153

    Product illustrations are exemplary and may differ from the chosen product.

SAFETY SWITCHES
Schmersal

SCHMERSAL,T4V7H 336-11Z POSITION SWITCH WITH ROLLER LEVER 7H #101168153

AZ Code: SC101168153

Brand: Schmersal

Model: T4V7H 336-11Z

Article Number: 101168153

Position switch 336 with actuator roller lever 7H, only for positioning tasks, Lever angle adjustable in 10° steps, Thermoplastic enclosure, double insulated, Good resistance to oil and petroleum spirit, Actuator heads can be repositioned by 4 x 90°, 1 Cable entry M 20 x 1.5

Download

Share:

Technical Specifications
Material -Housing: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
-Lever: Metal film
-Roller: Plastic
-Contacts: Silver
Ingress Protection (IP) rating IP67
Operating Temperature min: -30
max: +80
Measurements
Dimensions : H x W x D (mm) 173.5 H x 40.5 W x 57 D
Weight (gram) 165
Mechanical Data
Design of electrical connection Screw connection
Cable section -min: 0.75 - max: 2.5
Design of actuating element Roller lever
Switching frequency max. 5000 /h
Actuating torque min. 31 Ncm
Mechanical life 30.000.000 operations
Switchover time in accordance with actuating speed
Actuating speed max: 2.5 m/s
Bounce duration < 2
Electrical Data
Design of control element Normally open contact (NO), Opener (NC)
Switching Principle Creep circuit element
Number of auxiliary contacts 1
Number of safety contacts 1
Rated impulse withstand voltage Uimp 6 kV
Rated insulation voltage Ui 500 V
Thermal test current Ithe 10 A
Utilisation category AC-15: 230 V / 4 A,
DC-13: 24 V / 4 A
Max. fuse rating 6 A gG D-fuse

• Only for positioning tasks
• Design to EN 50041
• Lever angle adjustable in 10° steps
• Thermoplastic enclosure
• Double-insulated
• Good resistance to oil and petroleum spirit
• Wide range of alternative actuators
• Actuator heads can be repositioned by 4 x 90°
• 1 Cable entry M 20 x 1.5
