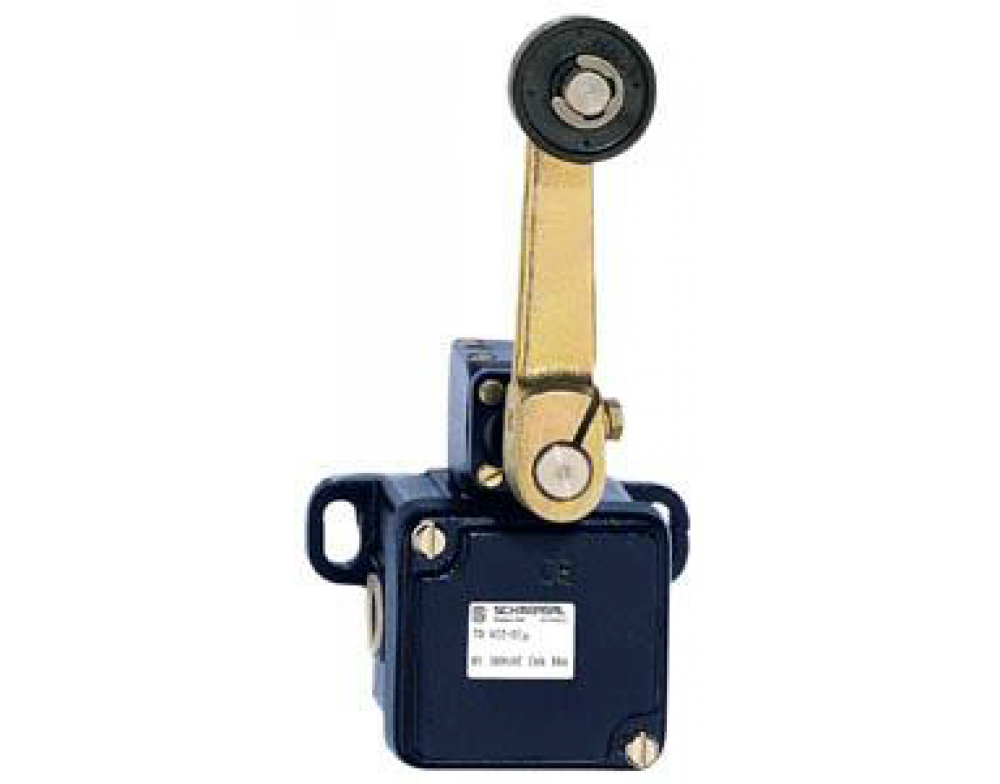

Medium heavy position switch, Actuator head can be repositioned in steps 4 x 90°, Metal enclosure, Continuous adjustment of lever position 360°, IP65, 2 cable entries M 20 x 1.5
| Technical Specifications | |
| Material | - Housing: cast iron, galvanized - Roller: Plastic - Contacts: Silver |
| Ingress Protection (IP) rating | IP65 to IEC/EN 60529 |
| Operating Temperature | - min: −30 °C - max: +90 °C |
| Measurements | |
| Dimensions : H x W x D (mm) | - sensor: H209 x W106 x L63mm - roller wide: 9mm - roller diameter: 36mm |
| Weight (gram) | 1295 g |
| Mechanical Data | |
| Design of electrical connection | Screw connection |
| Cable section | - min: 1.5 mm² - max: 2.5 mm² |
| Design of actuating element | Roller lever |
| Mechanical life | 10.000.000 operations |
| Contact opening | 2 x 6 mm |
| Actuating speed with vertical actuating angle to switch axis | - Min. Actuating speed: 1mm/min - Max. Actuating speed: 3m/s - Actuating angle from left of switch axis: 30° - Actuating angle from right of switch axis: 30° |
| Electrical Data | |
| Design of control element | Normally open contact (NO) |
| Number of shutters | 1 piece |
| Number of openers | 0 piece |
| Switching Principle | Creep circuit element |
| Rated insulation voltage Ui | 400 V |
| Thermal test current Ithe | 16 A |
| Utilisation category | AC-15: 400 V / 4 A |
| Max. fuse rating | 16 A gG D-fuse |
• Metal enclosure
• Actuator head can be repositioned in steps 4 x 90°
• Continuous adjustment of lever position 360°
• 1 Contact
• Lever can be transposed by 180°
• In temperature-resistant version, the roller can be mounted in two different positions on the shaft
• 106 mm x 71 mm x 63 mm (basic component)
• Protection class IP65
• 2 cable entries M 20 x 1.5
