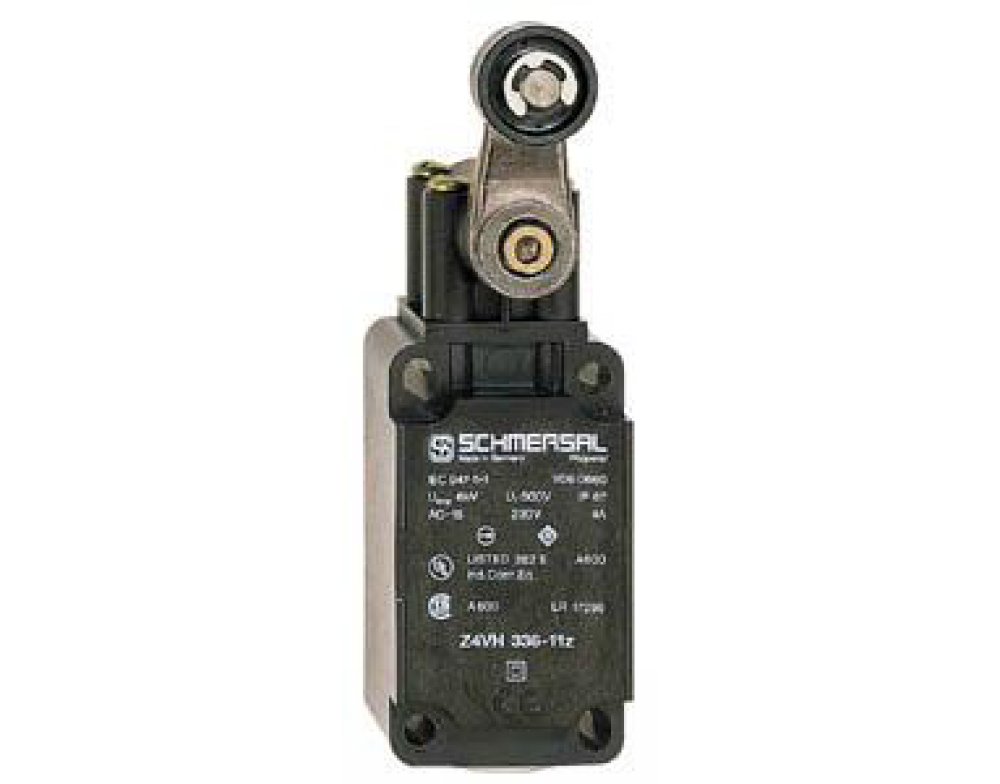

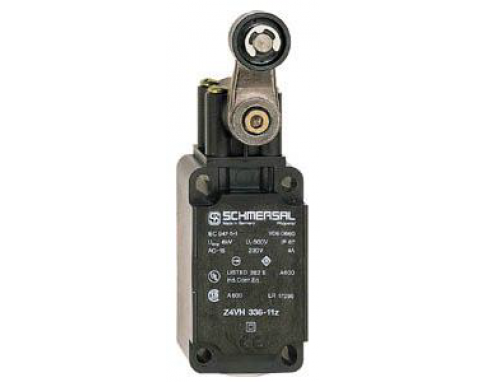

Position switch 336 with actuator roller, lever Lever angle adjustable in 10° steps, thermoplastic enclosure, double insulated, Good resistance to oil and petroleum spirit, Actuator heads can be repositioned by 4 x 90°, Snap action with constant contact pressure up to switching point, 1 Cable entry M 20 x 1.5
| Technical Specifications | |
| Material | - Housing: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing - Lever: Metal film - Roller: Plastic - Contacts: Silver |
| Ingress Protection (IP) rating | IP67 |
| Operating Temperature | - min: −30 °C - max: +80 °C |
| Measurements | |
| Dimensions : H x W x D (mm) | H 129.5mm x W40.5mm x L60.5mm |
| Weight (gram) | 165 g |
| Mechanical Data | |
| Design of electrical connection | Screw connection |
| Cable section | - min: 0,75 mm² - max: 2.5 mm² |
| Design of actuating element | Roller lever |
| Switching frequency | max. 5000 /h |
| Actuating torque | min. 26 Ncm |
| Mechanical life | 30.000.000 operations |
| Switchover time | < 2 ms |
| Actuating speed with actuating angle 30° to switch axis | - Max. Actuating speed 2.5 m/s |
| Bounce duration | in accordance with actuating speed |
| Electrical Data | |
| Design of control element | Normally open contact (NO), Opener (NC) |
| Switching Principle | Snap switch element |
| Number of auxiliary contacts | 1 |
| Number of safety contacts | 1 |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated insulation voltage Ui | 500 V |
| Thermal test current Ithe | 10 A |
| Utilisation category | AC-15: 230 V / 4 A, DC-13: 24 V / 4 A |
| Max. fuse rating | 6 A gG D-fuse |
| Required rated short-circuit current | 1000 A |
• Design to EN 50041
• Lever angle adjustable in 10° steps
• Thermoplastic enclosure
• Double-insulated
• Good resistance to oil and petroleum spirit
• Wide range of alternative actuators
• Actuator heads can be repositioned by 4 x 90°
• Snap action with constant contact pressure up to switching point
• 1 Cable entry M 20 x 1.5
