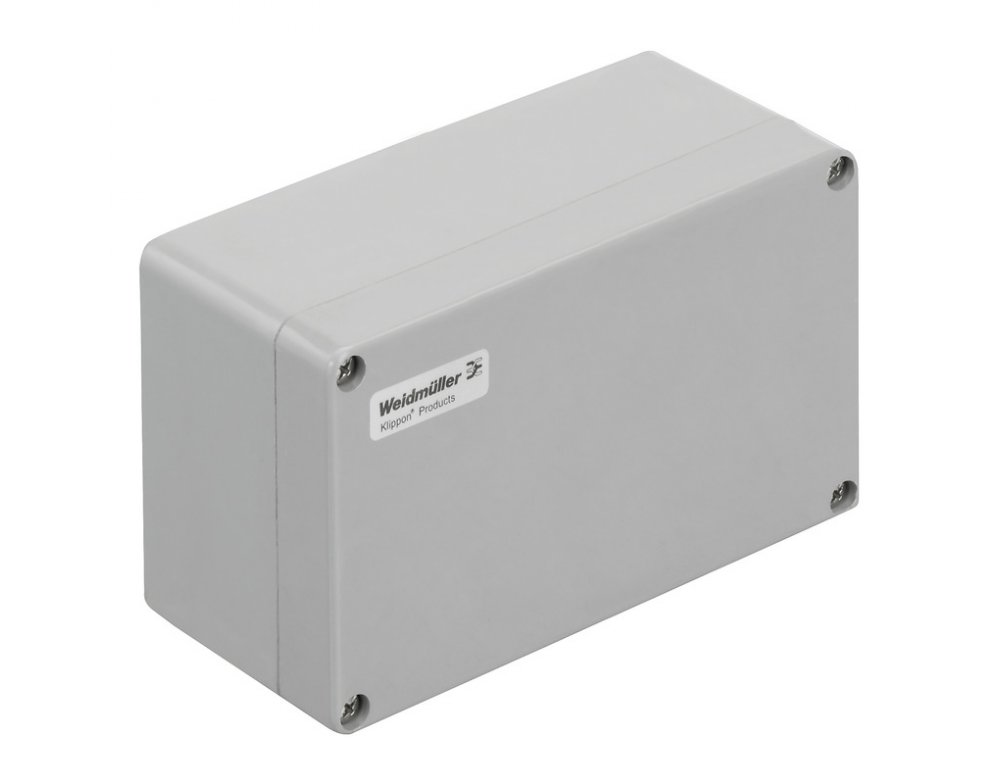

Product illustrations are exemplary and may differ from the chosen product.
GLASS FIBRE-REINFORCED POLYESTER ENCLOSURE, RAL 7001, GREY, SIZE: 120 X 220 X 90MM
| Technical Specifications | |
| Material | Glass fibre-reinforced polyester |
| Ingress Protection (IP) rating | IP66 |
| Operating Temperature | -40 °C to 100 °C |
| Measurements | |
| Dimensions : H x W x D (mm) | 120 x 220 x 90mm |
| Weight (gram) | 1,094 g |
| General Information | |
| Areas of Use | Harbour facilities, Machine construction, Process industry, Transportation |
| Material thickness | 4.39mm |
| Material thickness of cover | 5mm |
| Material thickness of enclosure | 4.39mm |
| Torque for lid screws | 2.5Nm |
| Surface finish | untreated, polished |
| Lid attachment | Slotted/Phillips screws |
| Installation advice | Direct mounting, Mounting straps |
| Standards | DIN EN 62208 - Empty enclosure standard |
| Impact resistance | IK 08 according to (IEC 62262 and DIN EN 50102) |
| Seal material | Chloroprene |
| UL 94 flammability rating | V-0 |
| Enclosure attachment | Installation through the housing rear wall, Fixing lugs |
Klippon® POK – polyester enclosure
The glass-fibre reinforced polyester enclosures of the Klippon® POK range offer a high-quality solution for protecting electrical components. These enclosures are ideal wherever corrosion resistance, shock resistance and a high degree of protection are required.
Features:
• glass-fibre reinforced polyester
• 17 sizes
• Two standard colours: grey (similar to RAL 7001) and black (similar to RAL 9011)
• Cover with stainless steel screws in cross-head / slotted design
• Moulded gasket made of silicone or chloroprene
• Fixing holes outside the sealed area
• Mounting directly in the enclosure or using an internal mounting plate
• Direct wall mounting possible using fixing holes or mounting feet
• Fastening thread to attach mounting rails and plates
• Weidmüller can manufacture and supply this enclosure to match customer specifications - fitted with all necessary terminals and cable glands.
